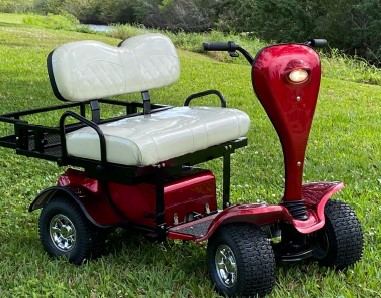

2023 CRICKET ESV

Description

CRICKET ESV Product Specifications
 Model: Double-seat CRICKET ESV Electric Sport vehicle – Four-wheel,
electric powered.
 Power: Single magnet DC 1,000-watt motor
 Transmission: Direct drive through 19:1 reduction gearbox
 Speed Control: Standard accelerator pedal on left side of floorboard
Directional Control: Forward/Reverse switch conveniently located on
main control
 Maximum Speed: Controlled from 0 to 12 mph in consideration of
congested areas and terrain
 Hill-climbing ability: 1:3 Gradient
 Battery Charging: Permanent on-board charging unit underneath front
seat Frame: MIG-welded high-tensile steel with corrosion protection
 Body: Molded in polymer-reinforced plastic
 Brakes: Single regenerative electromagnetic braking
 Batteries: 2 heavy-duty glass-mat U1, 12-volt 85-amp\hour in series (24-volt
system) Battery charger: 10-amp, automatic cut-off when fully charged
 Tires: 13″ x 6.50 x 6″ Tubeless – Recommended air pressure at 12-15
psi Turning Radius: 102″
 Overall Length: 52″ (including utility box)
 Overall Width: 32″ (including utility box)
 Overall Height: 28″
 Load Capacity: 600 Ibs.
 Vehicle Curb Weight: 313 Ibs.
