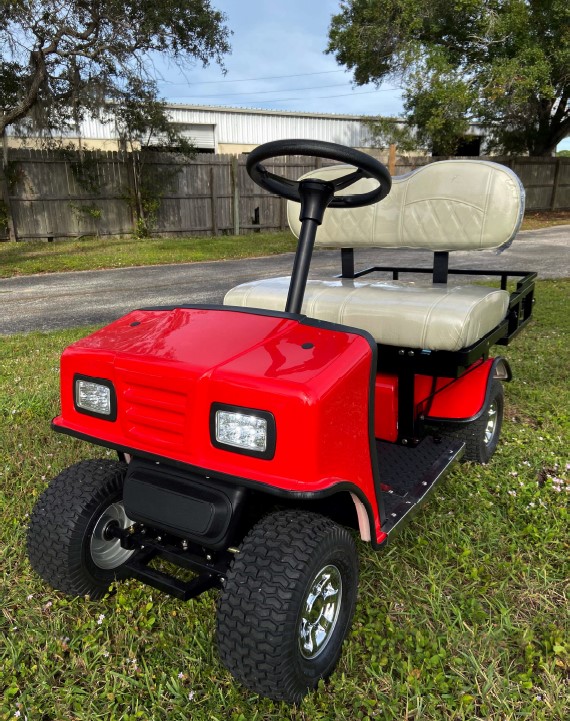

2023 CRICKET SX3

Description

CRICKET SX3 Product Specifications
 Power: Single magnet DC 1,000-watt motor
 Transmission: Direct drive through 16:1 reduction gearbox
 Speed Control: Standard accelerator pedal on left side of floorboard
Directional Control: Forward/Reverse switch conveniently located on
main control
 Maximum Speed: Controlled from 0 to 12 mph in consideration of
congested areas and terrain
 Hill-climbing ability: 1:3 Gradient
 Battery Charging: Permanent on-board charging unit underneath front
seat Frame: MIG-welded high-tensile steel with corrosion protection
 Brakes: Single regenerative electromagnetic braking
 Batteries: 3 heavy-duty glass-mat U1, 12-volt 35-amp\hour in series (36-volt
system) Battery charger: 10-amp, automatic cut-off when fully charged
 Tires: 13″ x 6.50 x 6″ Tubeless – Recommended air pressure at 12-15
psi Turning Radius: 102″
 Overall Length: With Rear Passenger Step Plate Installed: 78″
 Adjusted Overall Length: For Storage and Transport: 58″ (with
floorboard extension removed)
 Overall Width: 32″ (including utility box)
 Overall Height: 28″ (with seat back removed, steering wheel folded down,
and rear passenger safety bar removed)
 Load Capacity: 600 Ibs.
 Vehicle Curb Weight: 313 Ibs.
