Specification:

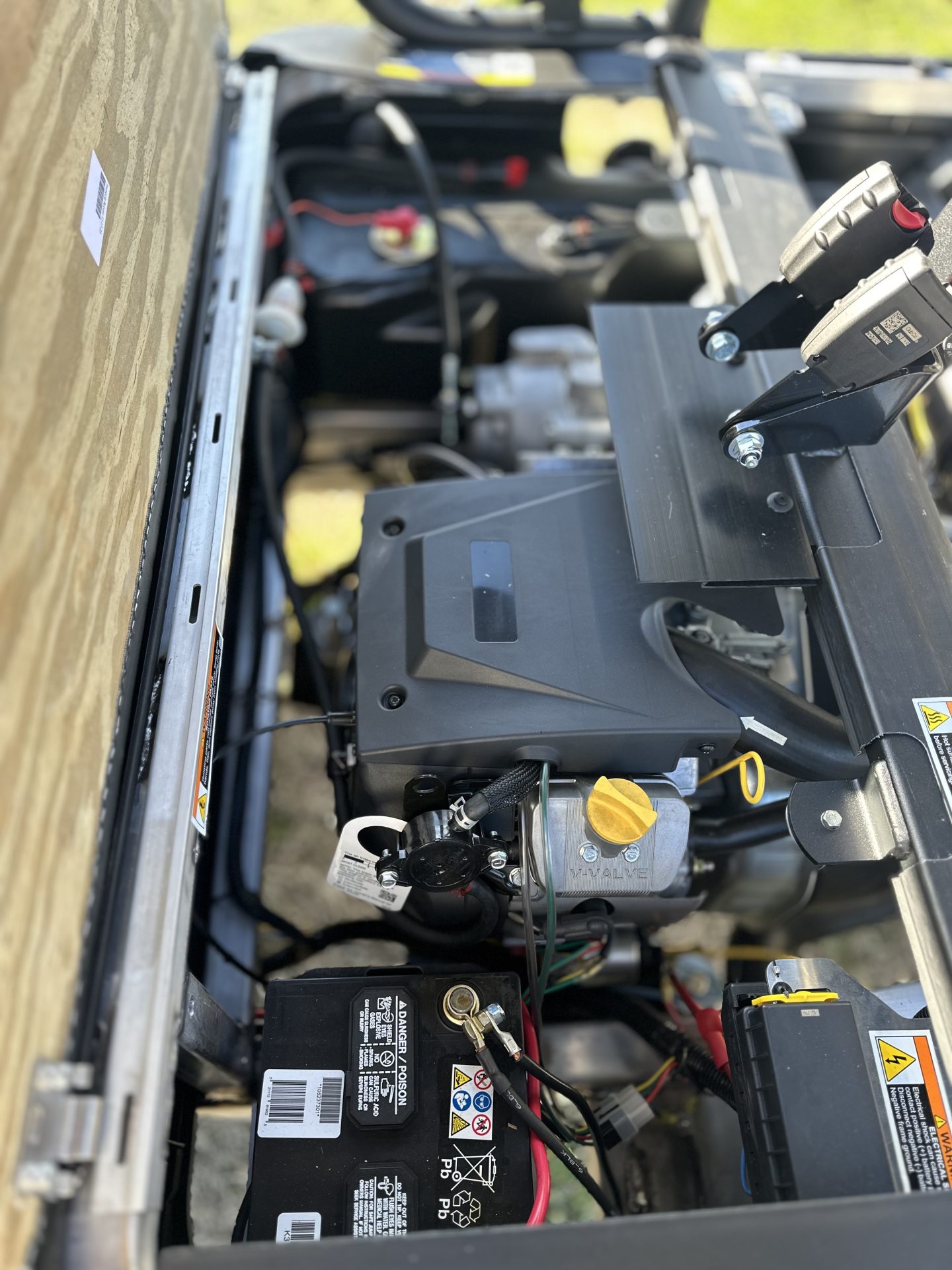

ENGINE Kawasaki 4-cycle, industrial grade
CYLINDERS Twin
VALVING Overhead Valve
COOLING Air Cooled
HORSEPOWER 20.1 hp (15.0 kW) rated @ 3400 RPM per SAE J1349
MAX TORQUE 36.5 ft-lb (49.5 N-m)
GOVERNOR Automatic ground speed sensing
FUEL DELIVERY SYSTEM Carburetor
FUEL CAPACITY 6.5 gal (24.6 L)

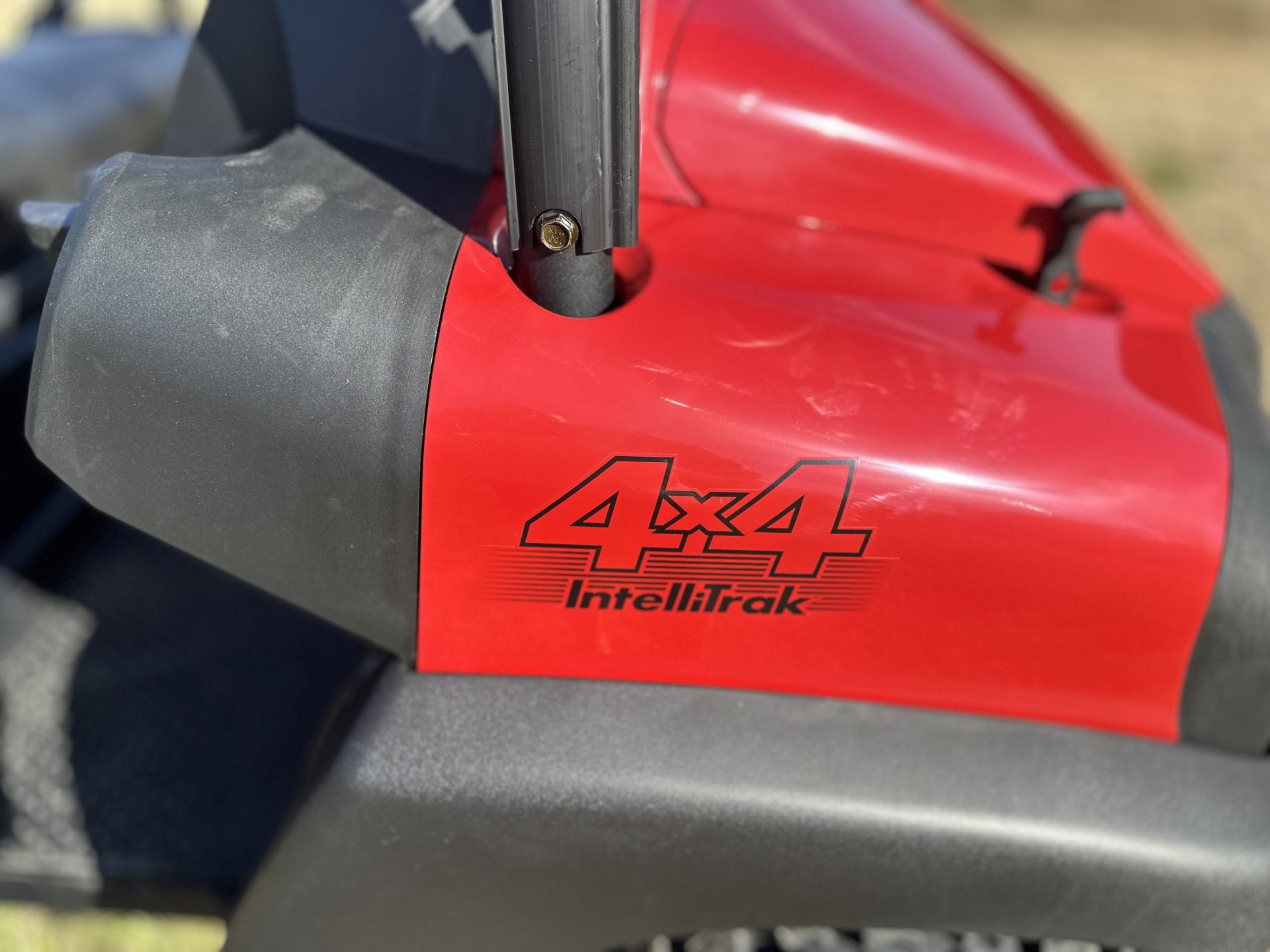

TRANSMISSION Continuously Variable Transmission (CVT) with IntelliTrak Automatic 4-Wheel Drive
GEAR SELECTION Forward/Neutral/Reverse
BATTERY 12-volt 500 CCA; 105 min Reserve capacity

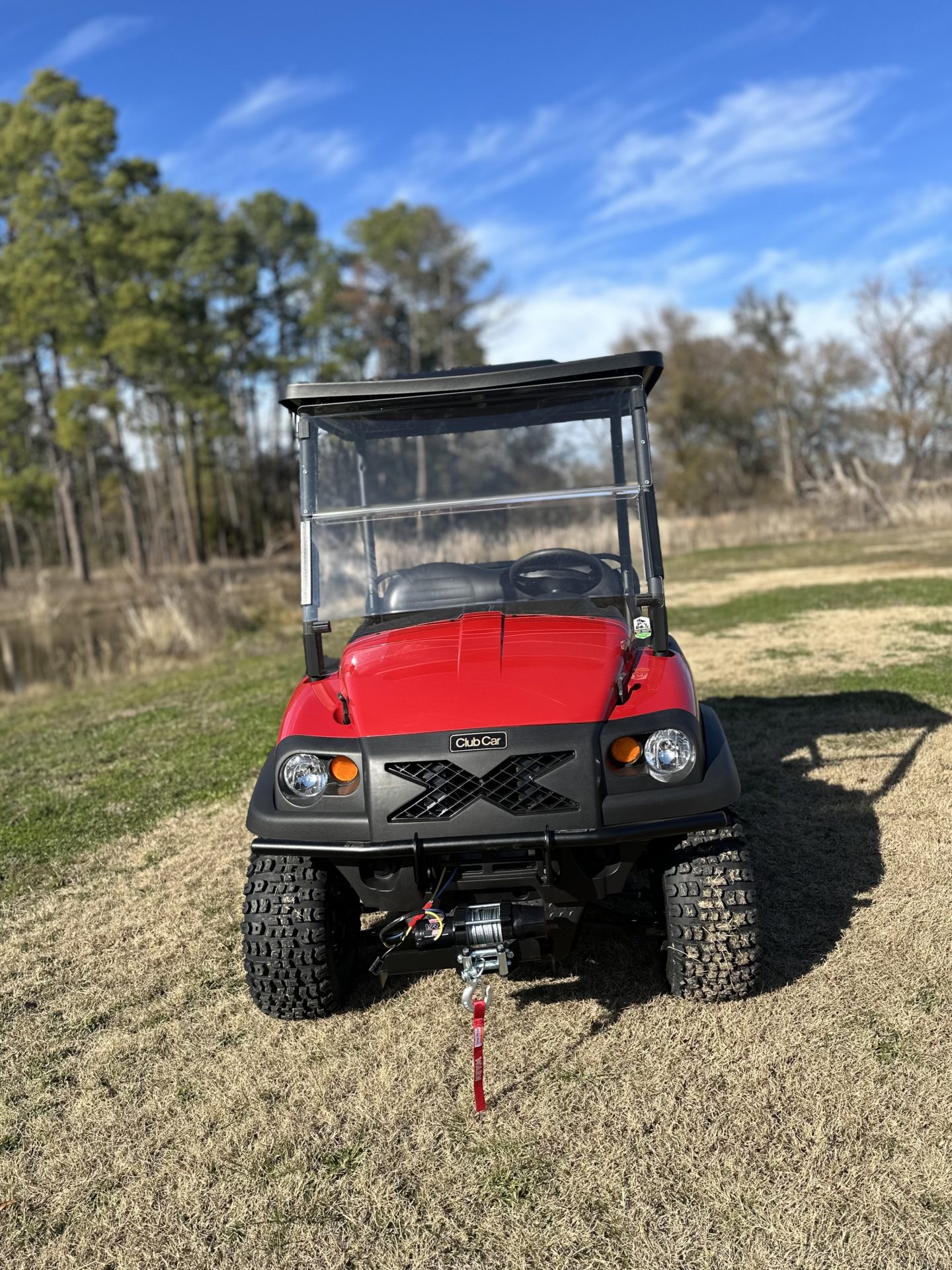

HEADLIGHTS Two 55 Watt Halogen

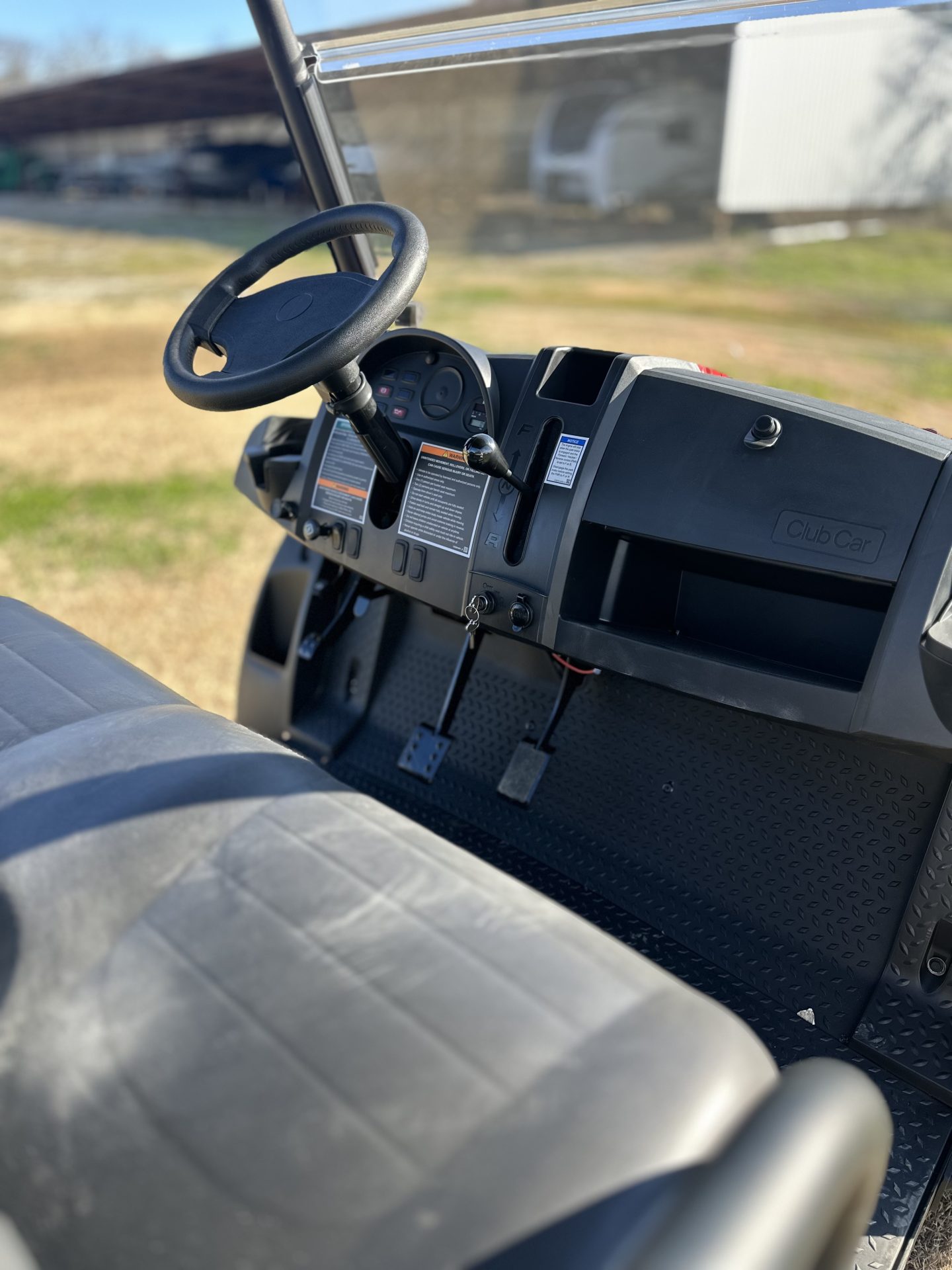

STEERING Self-adjusting Rack and Pinion with Adjustable Tilt
SUSPENSION (FRONT) Independent double A-arms with coil-over shocks
SUSPENSION (REAR) Semi-independent 4-Link suspension with coil over shocks
BRAKES Twin piston, hydraulic disc (front); Single piston, hydraulic disc (rear)
PARK BRAKE Foot-pedal activated, Mechanical disc
TIRES (FRONT) 25 x 10.5-12, 6-ply rated, Mud Tire
TIRES (REAR) 25 x 10.5-12, 6-ply rated, Mud Tire
BODY (FRONT & FINISH) GE Geloy high-impact, scratch-resistant, injection molded color with Automotive finish

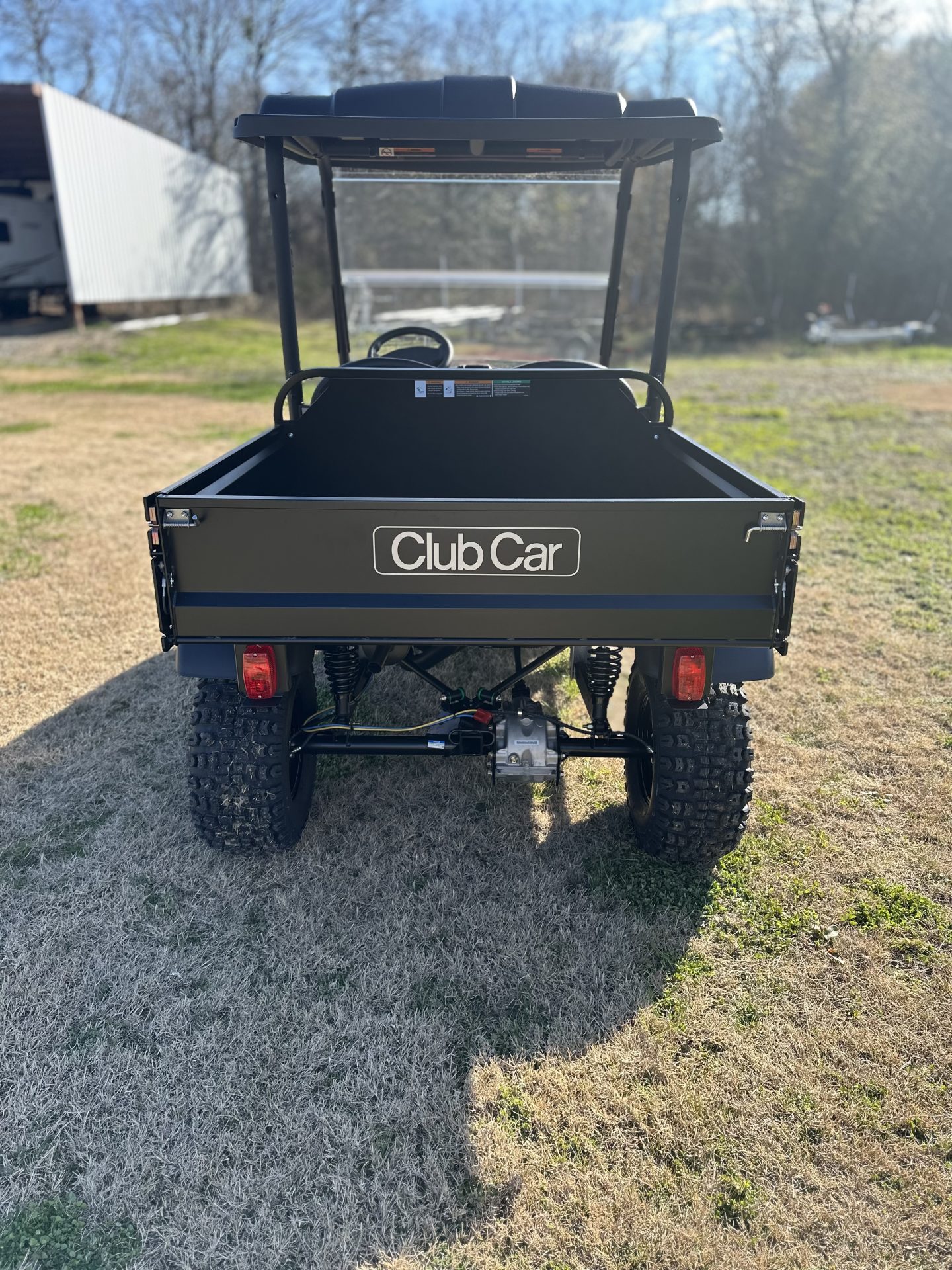

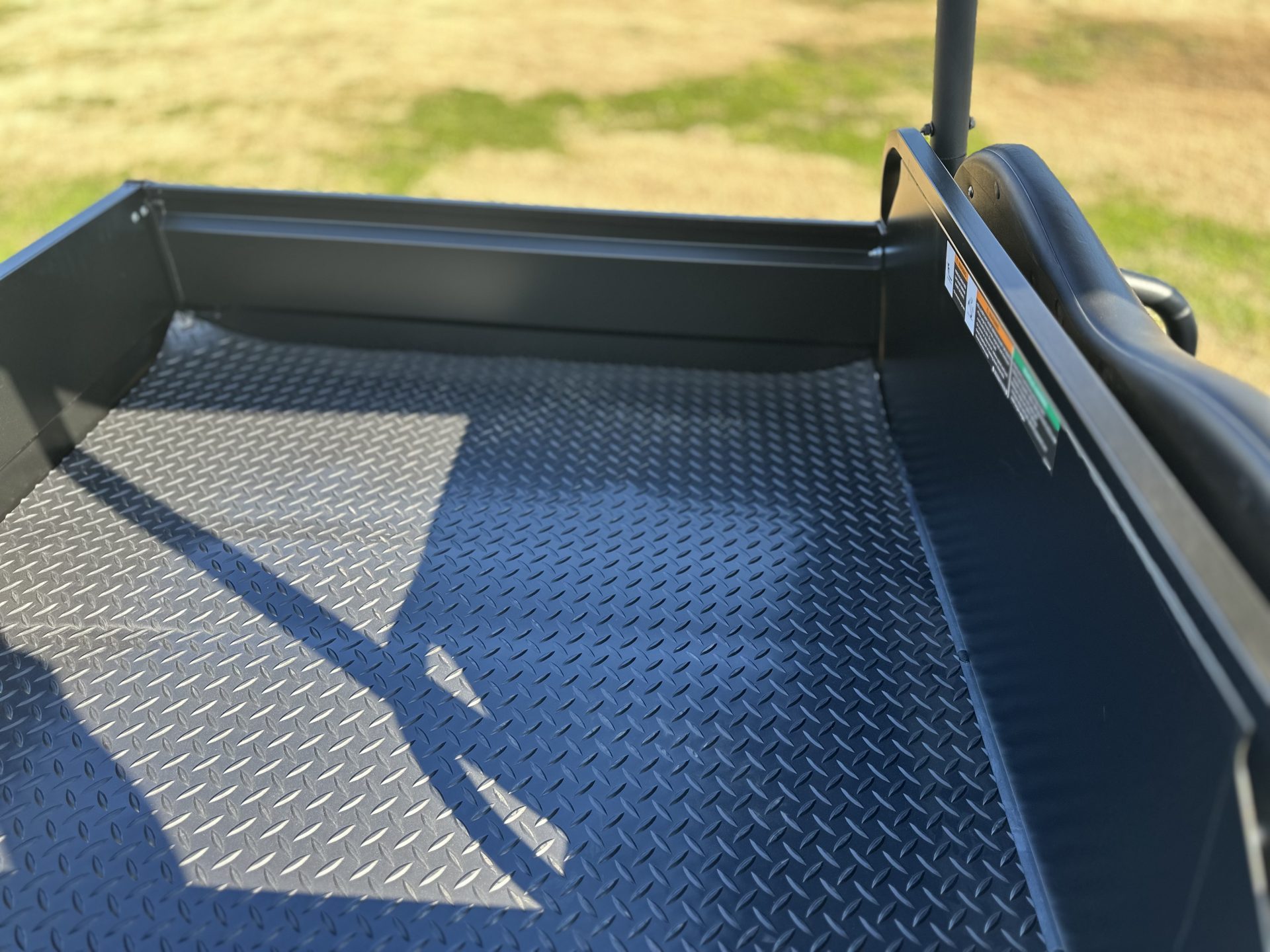

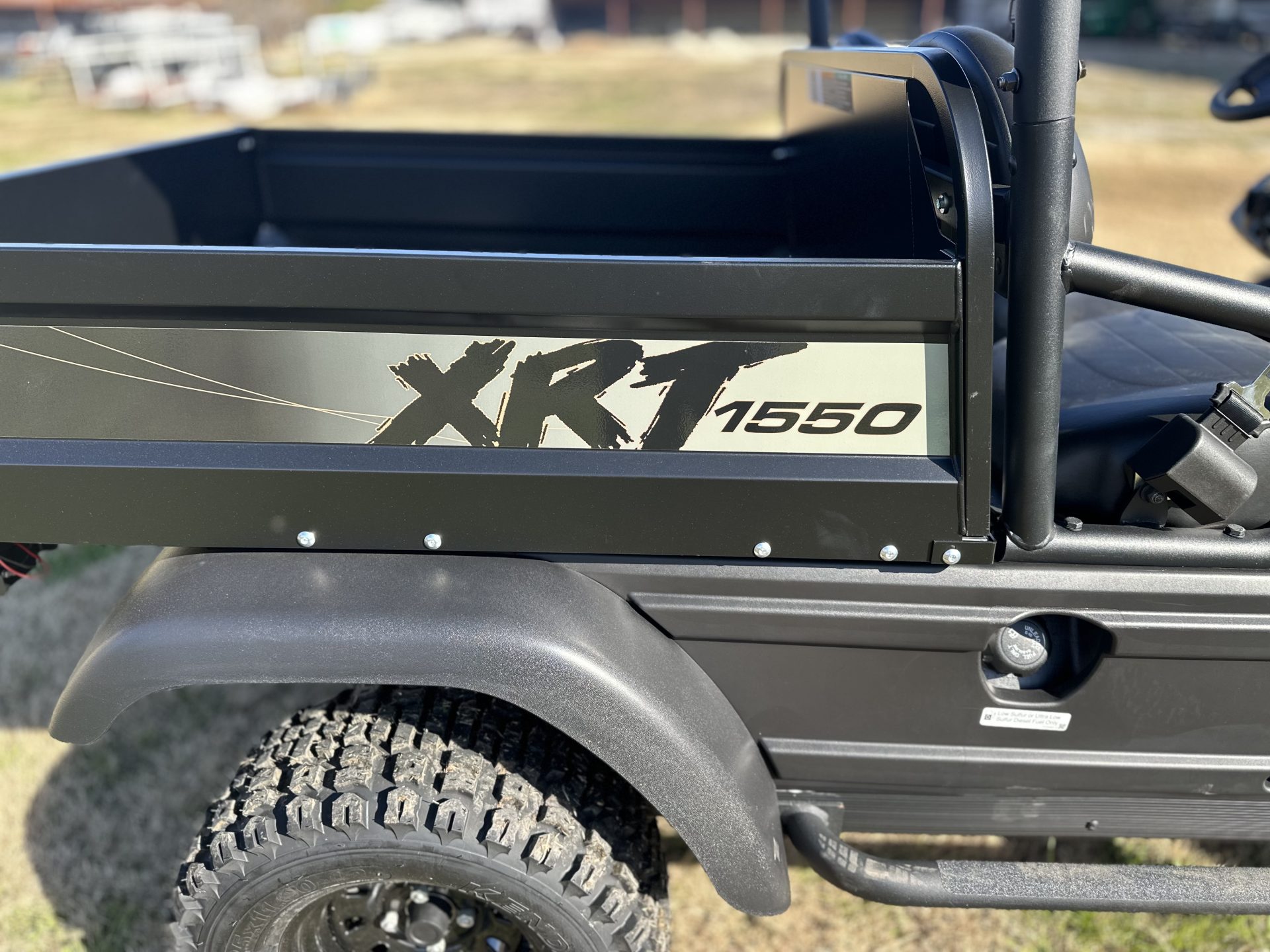

CARGO BED LxWxH 48.0 x 49.8 x 10.9 in (122 x 127 x 28 cm)
BED LOAD CAPACITY 800 lb (363 kg) – Standard; 1050 lb (476 kg) w/ HD Suspension
TOTAL VEHICLE CAPACITY 1,200 lb (544 kg) – Standard; 1,450 lbs (658 kg) with HD suspension
TOWING CAPACITY 2,000 lb (907.2 kg)
